Weighing just 32 lbs. and boasting a 400-lb. weight capacity, the Jazzy Carbon HD is a game-changing heavy-duty travel power wheelchair. It folds and locks into position in mere seconds and will keep you comfortable with a padded seat back and extra-wide foot platform.
Heavy-duty mobility meets lightweight mobility
The wait is over for a travel friendly, heavy-duty, power wheelchair built for portability. The Jazzy® Carbon HD offers a 400-lb. weight capacity, weighs 32.2 lbs. without the battery, has a durable carbon fiber frame, and gives you a greater level of independence throughout your travels.
Easy to fold, easy to lift, easy to transport
The Jazzy® Carbon HD folds in just a few seconds and locks securely into position. It is also one of the lightest models in the Pride® Mobility fleet and engineered for convenient storage and transport. When it comes time to ride again, it is just as easy to unfold and go.
Your comfort is paramount

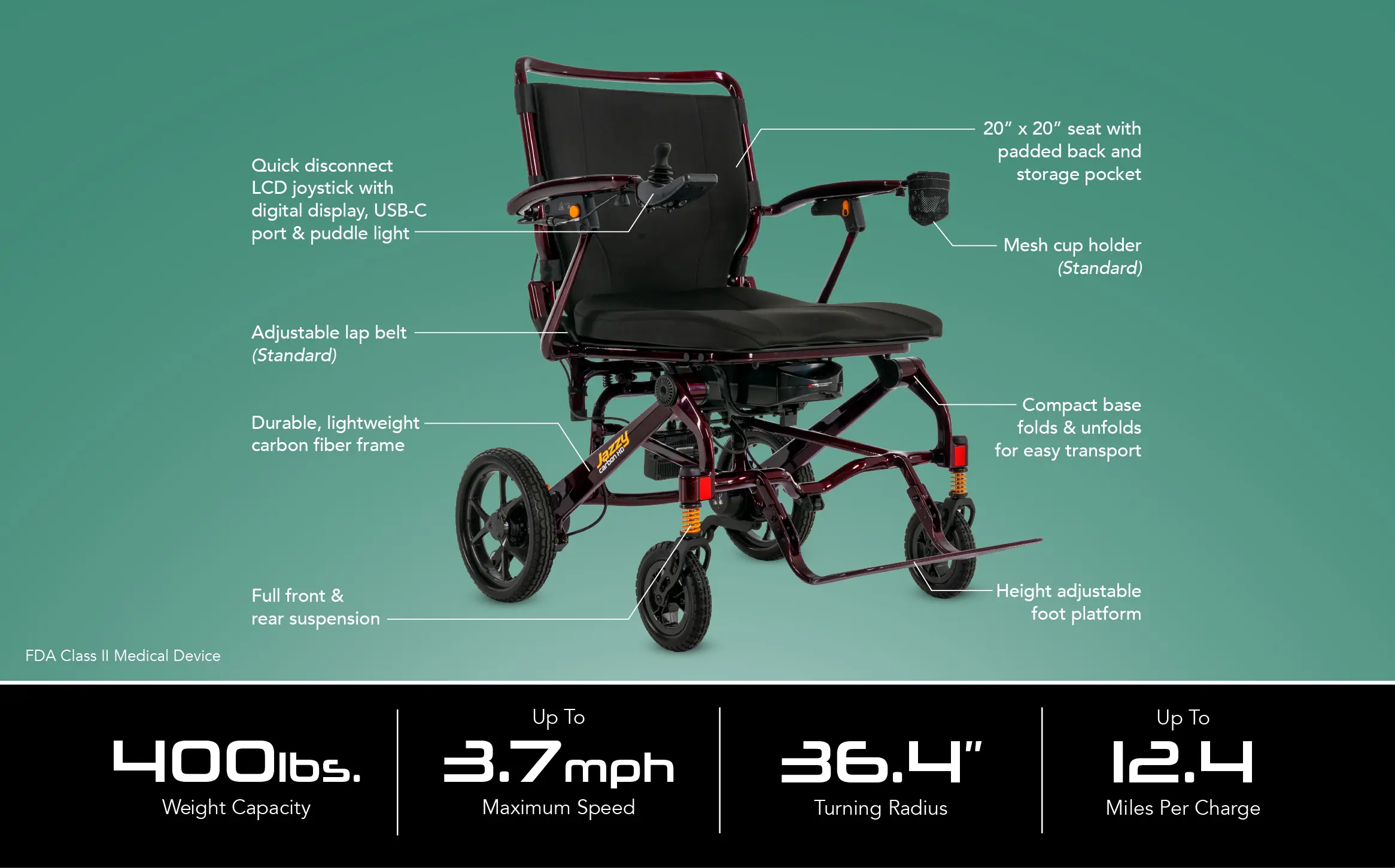

The roomy 20 x 20” seat, adjustable padded seat back, removable cushion, and extra-wide adjustable foot platform are designed for your comfort. It also has front and rear suspension providing a smooth ride over varied terrain. Jazzy® is known for world-class quality, a commitment to the industry’s most rigorous testing standards, and proven performance over three decades. You will get all of that with the Jazzy® Carbon HD! Travel worry-free and experience the best in lightweight portability!
We have an extensive inventory of in-stock power mobility models. However, due to some products being custom built and configured to your specifications, pickup/delivery turnaround time may be around 1-2 weeks. Contact us for questions or in-stock availability before submitting your order.
Original price was: $4,699.00.$3,749.00Current price is: $3,749.00.
| CATEGORY | SPECIFICATION |
|---|---|
| Model | |
| Weight Capacity | 400 lbs. |
| Maximum Speed1 | Up to 3.7 mph |
| Ground Clearance3 | 1″ at motor |
| Turning Radius3 | 36.4″ |
| Overall Length3 | 36.81″ |
| Overall Width3 | 26.4″ |
| Suspension | Full Front and Rear Suspension |
| Front Wheels | 6.5″ |
| Rear Wheels | 10.6″ |
| Range per Charge1,2 | Up to 12.4 Miles per charge |
| Product Weight Without Batteries3,5 | 32.2 lbs. without batteries |
| Standard Seating3 | Dimensions: 20″ x 20″ seat Seat sling with removable cushion |
| Folded Dimensions | 31.3″ L x 26.4″ W x 13″ H |
| Drivetrain/Motor Output | 24V 250W Brushless motors |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | Type: Lithium battery box Size 20 Ah |
| Battery Weight4 | 7.5 lbs. |
| Battery Charger | 2 Amp |
| HCPCS Codes | K0899 Power Mobility Device, not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and not guarantee reimbursement. Payer coding, coverage and bundling guidelines may apply. |
| Warranty | Frame: 5-year Electronics: 1-year limited Drivetrain: 1-year limited Battery: 1-year limited |
| Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%. 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight. |
|
| Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments. | |
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
| Color | Black Cherry, Night Sky |
|---|
